Trolley drive.

11 Posts
6 Users
0 Reactions
5,724 Views
Michael
(@mikath)
Posts: 59
Trusted Member
Topic starter


Drive to a narrow gauge trolley in 1:87.

/Mika

Stepcraft M.1000 + HIWIN Ball Screw + Semi-Closed Loop System + MM-1000 DI + Automatic Tool Changer + 2 Rows Tool Magazine Pneumatic Lifting + Engraving Laser DL445 + 4th Axis + Aluminum T-slot table + 3D Touch Probe + UCR201 + UCCNC + VCarve Pro + Cut3D + CorelDraw 2018 + Autodesk Inventor


Posted : 06/06/2016 10:35 am
(@calleja)
Posts: 41
Trusted Member


Good one. And where is the battery ??

Stepcraft 2 430
Kress 800 FME
UCCNC + UC100
Cut2D Desktop


Posted : 07/06/2016 8:34 am
Michael
(@mikath)
Posts: 59
Trusted Member
Topic starter

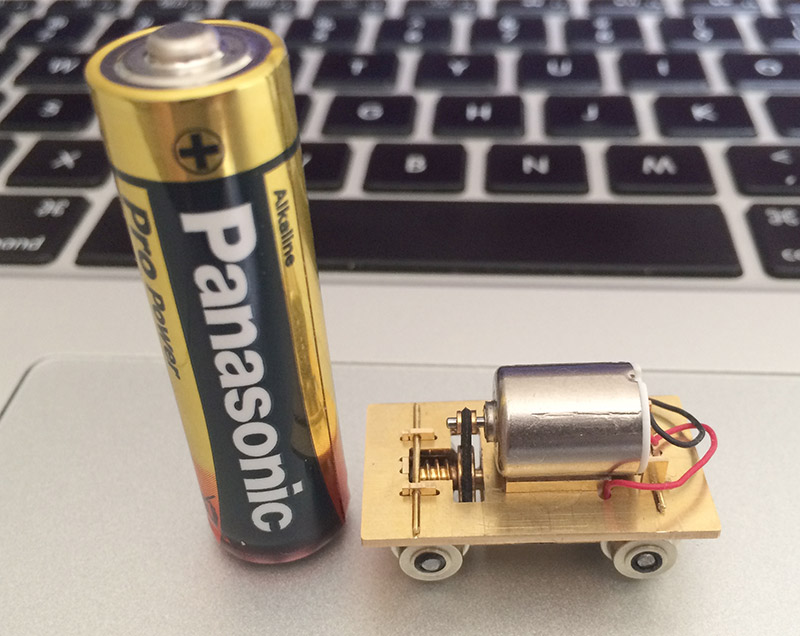

Here are a AA battery! 🙂
It has electrical pickup on the wheels.

/Mika

Stepcraft M.1000 + HIWIN Ball Screw + Semi-Closed Loop System + MM-1000 DI + Automatic Tool Changer + 2 Rows Tool Magazine Pneumatic Lifting + Engraving Laser DL445 + 4th Axis + Aluminum T-slot table + 3D Touch Probe + UCR201 + UCCNC + VCarve Pro + Cut3D + CorelDraw 2018 + Autodesk Inventor


Posted : 07/06/2016 12:08 pm
Hartmut
(@docbrown)
Posts: 506
Honorable Member


Wow, nice battery too 😆 😆 😆

Is there any photo of the original trolley you like to build or are there first photos of the cabin?

Viele Grüße

Hartmut
V2/420 China 800W wassergekühlt
UCCNC & ARDUINO ESTLCAM Controller
ESTLCAM & QCAD
-----------------------------------
DK5LH/G11


Posted : 07/06/2016 12:18 pm
Michael
(@mikath)
Posts: 59
Trusted Member
Topic starter


/Mika

Stepcraft M.1000 + HIWIN Ball Screw + Semi-Closed Loop System + MM-1000 DI + Automatic Tool Changer + 2 Rows Tool Magazine Pneumatic Lifting + Engraving Laser DL445 + 4th Axis + Aluminum T-slot table + 3D Touch Probe + UCR201 + UCCNC + VCarve Pro + Cut3D + CorelDraw 2018 + Autodesk Inventor


Posted : 07/06/2016 12:27 pm
Hartmut
(@docbrown)
Posts: 506
Honorable Member


Really nice! :woohoo: What country?

Viele Grüße

Hartmut
V2/420 China 800W wassergekühlt
UCCNC & ARDUINO ESTLCAM Controller
ESTLCAM & QCAD
-----------------------------------
DK5LH/G11


Posted : 07/06/2016 1:26 pm
ZenziWerken
(@speedo)
Posts: 901
Noble Member


Probably Sweden ... http://www.svlv.se/mdr-131---187.html

Daniel
-----
zenziwerken.de « dxf-downloads von kreativen Projekten
cnc-wiki.de « lesen ... lernen ... fräsen


Posted : 07/06/2016 1:28 pm
(@rahul)
Posts: 569
Honorable Member


Probably Sweden ... http://www.svlv.se/mdr-131---187.html

Looking at the picture's URL it seems very likely B)

Fräse: SC 2/840 USB, Proxxon IBS/E STEPCRAFT HF-500, Werkzeugwechsler + WZLS + T-Nutentisch
3D-Drucker: MendelMax 1.5
CAD: Designspark Mechanical, Eagle
CAM: Estlcam V9, DeskProto


Posted : 07/06/2016 1:33 pm
Michael
(@mikath)
Posts: 59
Trusted Member
Topic starter


I live in Sweden and make modells of Swedish trains.

/Mika

Stepcraft M.1000 + HIWIN Ball Screw + Semi-Closed Loop System + MM-1000 DI + Automatic Tool Changer + 2 Rows Tool Magazine Pneumatic Lifting + Engraving Laser DL445 + 4th Axis + Aluminum T-slot table + 3D Touch Probe + UCR201 + UCCNC + VCarve Pro + Cut3D + CorelDraw 2018 + Autodesk Inventor


Posted : 07/06/2016 11:32 pm
(@aksuhoo)
Posts: 2
New Member


Can you speak Finnish?


Posted : 24/03/2017 2:53 pm
Michael
(@mikath)
Posts: 59
Trusted Member
Topic starter


Can you speak Finnish?

No, just Swedish och English.

/Mika+

Stepcraft M.1000 + HIWIN Ball Screw + Semi-Closed Loop System + MM-1000 DI + Automatic Tool Changer + 2 Rows Tool Magazine Pneumatic Lifting + Engraving Laser DL445 + 4th Axis + Aluminum T-slot table + 3D Touch Probe + UCR201 + UCCNC + VCarve Pro + Cut3D + CorelDraw 2018 + Autodesk Inventor


Posted : 24/03/2017 4:09 pm
