CNC ROUTER FOR WORKSHOP PROS
STEPCRAFT M-SERIES
All the space you need! The STEPCRAFT M-Series is the all-rounder among CNC machines. With Freestyle Milling™ and two different machine table heights, the CNC system offers features never seen before. Start today with processing large sheet materials, wooden tables or even floors! The CNC router can run 24/7 and can be used for milling as well as for 3D printing, lasering, plotting or cutting thanks to the numerous CNC accessories. The STEPCRAFT M-Series fits perfectly into workshops, schools or production halls.
NEMA 23
Powerful stepper motors for perfect milliing results.
BOSCH REXROTH BALL BEARING GUIDE
High precision guide out of hardened steel. Reliable, accurate and next to wear-free.
FLEXI GUIDES™
Quick and easy guidance of cables and tubes.
TOOL HOLDER Ø 43 MM
Standard tool holder enables the use of different tools.
SEMI CLOSED LOOP-SYSTEM™
With the optional Semi Closed Loop System™ you can upgrade your CNC machine to a step monitoring on all CNC axes.
IGUS® DRYSPIN THREADED LEAD SCREW
Out of wear-resistant igus® high performance polymers. The adjustable lead screw nuts minimize backlash. HIWIN® ball screws optionally available.
OPTIMAL DUST PROTECTION
Three seals on the Y-axis prevent the ingress of dust an debris into the machine.
MACHINE TABLE
Standard MDF machine table with aluminum T-slots for flexible clamping of workpieces, aluminum T-slot table optionally available
TWO MACHINE TABLE HEIGHTS
The perfect height for your workpiece! Also optimally suited for the permanent installation of CNC accessories.
CNC MILLING MACHINE FOR LARGE AND SMALL CNC PROJECTS
The perfect size for each CNC project! The CNC router offers lots of space for the CNC manufacture of individual parts. With the M.500, M.700 and M.1000 you can realize the most exciting tasks from prototyping and architecture to fixtures and vocational training. From mini mill to industrial CNC machine, you can choose the perfect size for your needs. All CNC mills of the STEPCRAFT M-Series are available as diy cnc machine or as ready-to-run system.
M.1400 ULTIMATE - FOR MAXIMUM PERFORMANCE
Bigger, stronger, faster. The M.1400 is the ultimate powerhouse of the STEPCRAFT M-Series. For this purpose, the M.1400 Ultimate is equipped with powerful features as standard. From high-power motors to ball screws and the Semi Closed Loop System™, the M.1400 Ultimate comes with all the features you need for the ultimate milling experience. With 1213 x 1624 x 646 mm (X, Y, Z), the M.1400 Ultimate boasts a stately size and offers plenty of room for creative ideas. As we take care of the assembly of the CNC machine for you, you receive the M.1400 Ultimate fully assembled as a plug-and-play system and can get started right away.
Standardly equipped with HIWIN® ball screws and 4A Sanyo-Denki stepper motors (X, Y), the M.1400 Ultimate moves at a maximum speed of a whopping 170 mm/s. From wood to aluminum to plastics, you can clamp a wide variety of materials on the aluminum T-slot table to be machined on the CNC router. The Semi Closed Loop System™ ensures that the workpiece is protected by the emergency stop even in the event of a collision or incorrect settings.
HIWIN® BALL SCREWS
HIWIN® ball screws on all axes ensure maximum accuracy and precision and run almost wear-free. The balls roll in an endless loop between the threaded spindle and the nut via the ball recirculating system.
SEMI CLOSED LOOP
The M.1400 Ultimate features step monitoring on all axes. The Semi Closed Loop System™ detects step losses and automatically triggers the emergency stop. This keeps your workpiece protected even in the event of a collision or incorrect settings.
ALUMINUM T-SLOT TABLE
The M.1400 Ultimate is standardly equipped with an Aluminium T-Slot Table. This way, the CNC machine is optimally prepared for working with the lubrication system and other fluids.
IGUS ENERGY CHAINS
Powerful 4A Sanyo Denki NEMA 23 stepper motors are installed on the X and Y axes. Together with the 3A Sanyo Denki NEMA 23 stepper motors on the Z-axis, they powerfully drive the M.1400 Ultimate through a wide variety of materials.
POWERFUL MOTORS
Auf der X- und Y-Achse sind kraftvolle 4A Sanyo Denki NEMA 23-Schrittmotoren verbaut. Zusammen mit den 3A Sanyo Denki NEMA 23-Schrittmotoren auf der Z-Achse treiben sie die M.1400 Ultimate kraftvoll durch die unterschiedlichsten Materialien.
ULTIMATE
Ultimate. This stands for powerful power packs, special equipment, plenty of working space and additional features. For the ultimate milling experience on two different machine table levels.
INNOVATION ON EVERY LEVEL
The STEPCRAFT M-Series offers entirely new possibilities of CNC machining. On two different machine table heights, you can realize almost every CNC router project in your CNC workshop! The 90° T-slot table even allows for the vertical clamping of workpieces! This way, the CNC router excels on all levels in innovative and comfortable clamping methods.
TWO MACHINE TABLE HEIGHTS
- The perfect height for your workpiece
- Linear Profiles Y for two different machine table heights
- Perfectly suited for CNC processing of higher workpiece
- Easy and quick installation and removal thanks to EasyFix locking nuts
- Allows for permanent installation of CNC accessories (4th accessories)
- Quick and easy conversion
MACHINE TABLE WITH T-SLOTS
- Quick and easy clamping of CNC workpieces
- MDF machine table with aluminum T-slots
- Easily removable CNC machine table elements
- Fits both CNC machine table levels
- Aluminum T-slot table optionally available
90° T-SLOT TABLE
- Easy installed instead of a machine table element
- Five T-slots for flexible clamping
- 90° T-slot table optimally suited for vertical securing of workpieces
- Machine Table Element made of aluminum
HIGH-END CNC TECHNOLOGY
Highly precise results require sophisticated CNC technology. Thanks to the innovative extruded profiles and Bosch Rexroth linear guides, the STEPCRAFT M-Series operates with utmost accuracy and reliability. The Flexi Guides™ help you to comfortably guide cables from tools and accessories while the optional Semi Closed Loop System™ offers an additional protection of your workpiece.
HIGH RIGIDITY X-PROFILE
The solid X-profile of the STEPCRAFT M-Series sets new standards in stability and design of CNC router machines. The intelligent construction ensures high force absorption and the even distribution of forces inside the axis whereby an extreme torsion resistance is obtained. Only by use of aluminum it is possible to create such an exceptionally smart and solid profile design that could never be realized from steel. A STEPCRAFT innovation protected by a registered utility model.
SEMI CLOSED LOOP SYSTEM™
The gantry of the Y-axis aligns itself automatically after each homing. With the optional Semi Closed Loop System™ you can upgrade your CNC machine to a step monitoring on all CNC axes. If the system detects a deviation from predefined steps, as in case of a collision or false settings, the emergency stop is automatically triggered and. This way your workpiece is protected from potential damage.
BALL BEARING GUIDE
All axes of the STEPCRAFT M-Series feature a high precision guidance. Due to the Bosch Rexroth ball bearing guide made of hardened steel, the CNC machine operates absolutely reliable and next to wear-free at a simultaneous high load capacity. The linear carriages are additionally protected from dust and debris by a special seal.
FLEXI GUIDES
No cable clutter! Each machine of the STEPCRAFT M-Series comes with three Flexi Guides™. The white plastic holders serve to securely guide cables and tubes of tools and accessories.
The Flexi Guides™ can be easily positioned and fastened in the T-slot of the X-axis.
POWERFUL DRIVE
The STEPCRAFT M-Series operates with maximum precision and accuracy and runs low-noise and vibration-free. It is completely up to you whether you wantyour CNC router to work with igus® dryspin threaded lead screw or ball screws. With the stepper motors Nema 23, the CNC machine can powerfully process different materials.
IGUS® DRYSPIN THREADED LEAD SCREWS
- Based upon wear-resistant igus® high performance polymers
- 5 times longer service life and higher efficiency
- Low-noise and vibration-free
- Driven by powerful stepper motors Nema 23 on both sides of the Y-axis
HIWIN® BALL SCREWS
- Optionally installable instead of standard igus® dryspin threaded lead screws
- Very smooth-running
- Balls roll infinitely between threaded shaft and nut via ball recirculating system
- For maximum precision and accuracy
UNIQUE: FREESTYLE MILLING
Milling, laser engraving or 3D printing — how and where you want! The STEPCRAFT M-Series is the only CNC machine featuring real Freestyle Milling™ worldwide! Simply place the CNC machine wood where it is needed. The powerful vacuum panels will attach the CNC router firmly to the ground. Thanks to the completely removable machine table, you can engrave letterings, patterns and designs into floors, furniture, sheet material or permanently installed workpiece materials. The numerous possible mobile applications make the STEPCRAFT M-Series the most versatile CNC router machine in the world – protected as a utility model by German trademark and patent office.
The CNC system that only needs to be as large as your CNC router project! With the STEPCRAFT M-Series you can save the money for a giant CNC mill. Just remove the machine table and mill all the way down.
More space for creative freedom! From tabletop to wardrobe to hardwood floor: Use the innovative Freestyle Milling™ to individually process existing furniture and built-in floors.
Powerfully hold in place! The vacuum panels can be easily attached to your CNC router and have to be connected with a suitable vacuum cleaner. The generated vacuum secures your CNC router machine on the spot.
CNC TOOLS - EASILY MORE CREATIVE
Turn your CNC router from a milling machine to a 3D printer, a laser, a plotter or a tangential knife. This way you can use your STEPCRAFT M-Series for woodworking as well as for processing plastics, aluminum, cardboard, foil or brass. All STEPCRAFT CNC tools can be comfortably clamped in the tool holder of the CNC router. Your creativity will know no limits and you will save money for additional machinery.
SPINDLE MOTOR
Create high precision workpieces from sheet material like mdf board, Plexiglas®, wood, aluminum and carbon. Start today and CNC produce your own guitar, fixture or mobile charging station.
Do you need help selecting a suitable CNC spindle for your needs? Please visit How to find the perfect Spindle Motor and you will find all the information on our HF Spindle, CNC Tool Changer, the MM-1000 or AMB milling motors.
TANGENTIAL KNIFE
If you want to cleanly cut letterings and small contours, the OTK is your first choice. The Oscillating Tangential Knife cuts highly precise and automatically turns into the respective cutting direction. This allows you make leather keychains or cardboard buildings.
3D PRINTER
The 3D Print Head will build up your 3D models layer by layer. You can use the CNC accessory to 3D print spare parts, prototypes and figures from 3D printer filament. The optional Workpiece Fan makes it even possible to 3D print small, pointed geometries.
CNC LASER
When working with the laser, you no longer need to clamp your workpieces. The Laser Engraver operates contactless. Depending on the material you can even use it for small cutting jobs. This way you can use the laser to create engravings, halftoners or puzzles.
DRAG KNIFE
The CNC Drag Knife precisely cuts flock, paper or vinyl. It is perfectly suited for T-shirt print or to make sticker.
DIY CNC VS. READY-TO-RUN SYSTEM
Do you like assembling technical products or do you want to start right away? You have the choice! All CNC milling machines of the STEPCRAFT M-Series are available as CNC router kit or as ready-to-run system. As special service, we offer a voluntary manufacturer`s warranty of three years on all our M-Series CNC systems to private customers (date of purchase).
CNC KIT
Assembling a CNC router is no rocket science. We provide you with all the necessary CNC parts safely packed in a styrofoam core. The assembly manual and the video support will guide you step by step through the CNC assembly of your diy CNC mill. After a few hours your STEPCRAFT M-Series machine is ready for operation. You will know your desktop CNC inside out and will be able to adjust and maintain the CNC router on your own.
Benefits of the DIY CNC kit:
- Save money
- Know every single detail of your CNC router machine
- Maintain and adjust your CNC mill on your own
- Pleasure in assembly of diy CNC router kit
CNC READY-TO-RUN SYSTEM
Start right away with your CNC projects! If you decide on the Ready-to-Run System, your CNC router will be assembled in our STEPCRAFT headquarter in Germany. Our highly experienced CNC technicians will set up your CNC machine perfectly. This way, you can save the time for the CNC assembly and immediately start realizing your CNC projects.
Benefits of the pre-assembled CNC Router::
- Start immediately
- Save time
- Perfectly assembled CNC router
- CNC engraving machine set-up and aligned
M-SERIES: FIND THE BEST CNC ROUTER FOR YOUR NEEDS
The STEPCRAFT M-Series is available in three different sizes. In the table below you will find all technical data on the M.500, M.700 and M.1000. For additional information on our CNC routers, please visit our CNC shop. You need more information? We are happy to help. You can reach us via e-mail ([email protected]) or phone (+49 2373 1791160).
|
|

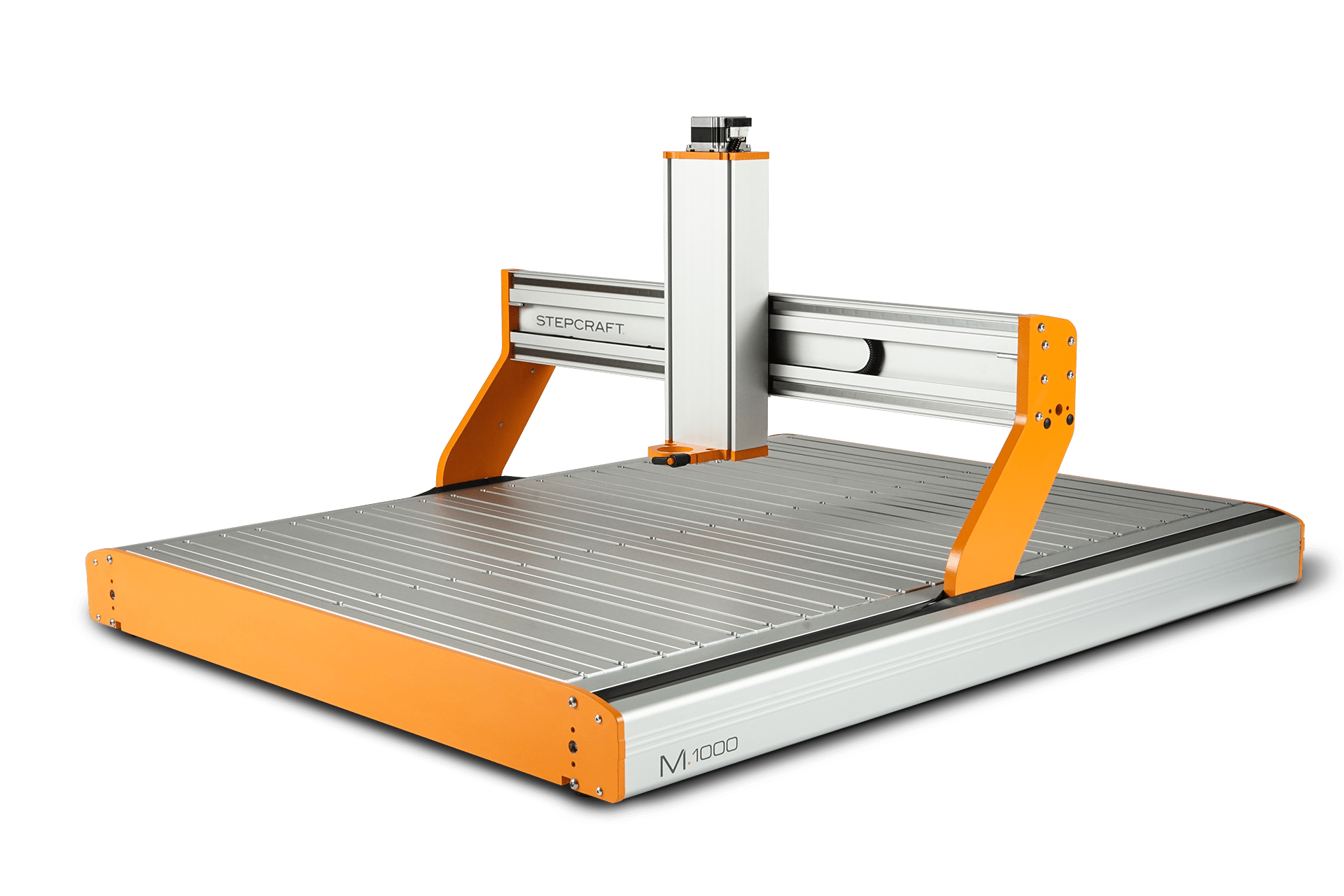

STEPCRAFT M.500
|
STEPCRAFT M.700
|
STEPCRAFT M.1000
|
STEPCRAFT M.1400 Ultimate
|
|---|---|---|---|---|
|
Passage Height
|
135 / 205 mm
|
|||
|
Repeatability
|
+/- 0,025 mm / 0.0009 in (with optional HIWIN® ball screws: +/- 0,015 mm / 0.0005 in)
|
+/- 0,015 mm
|
||
|
Programmable Resolution
|
0,00625 mm / 0.0002 in (with opt. HIWIN® ball screws: 0,005 mm)
|
X/Z 0,003125 mm, Y 0,0125 mm
|
||
|
Backlash
|
< 0,05 mm
|
< 0,03 mm
|
||
|
Maximum Speed in diagonal Travel X-Y
|
120 mm/s (140/170 mm/s Black Edition) / 4.72 in/s (5.50/6.69 Black Edition)
|
170 mm/s
|
||
|
Lead Screw
|
igus® dryspin 12 x 5 mm / 0.47 x 0.19 in
(opt.: HIWIN® ball screws 12 x 5 mm / 0.47 x 0.19 in)
|
HIWIN®-ball screws X/Z 12 x 5 mm, Y 20 x 20 mm
|
||
|
Linear Guide
|
Bosch Rexroth ball bearing guide
|
|||
|
Drive
|
Stepper motors: 3A Sanyo-Denki NEMA 23
|
Stepper motors: Z 3A Sanyo-Denki NEMA 23,
X/Y 4A Sanyo-Denki NEMA 23
|
||
|
Tool Holder
|
ø 43 mm / 1.69 in clamping diameter (Euro neck, optional smaller diameters)
|
|||
|
Weight
|
28 kg
|
35 kg
|
42 kg
|
137 kg
|
|
Input Voltage
|
100 - 240 V
|
|||
|
Output Voltage
|
24 - 30 V
|
|||
|
Power Consumption
|
180 W
|
|||
|
Interface
|
USB / Parallel (LPT1) / Network RJ-45
|
|||
STEPCRAFT – THE GERMAN CNC MACHINE MANUFACTURER
ABOUT US
STEPCRAFT is one of the global leaders in developing, designing and producing multifunction CNC routers. Headquartered in Menden, Germany, we manufacture and distribute three different CNC machine series and CNC accessories. STEPCRAFT products are made in Germany and stand for high quality and innovative technology. Today, more than 21`000 STEPCRAFT CNC systems help producing models, prototypes, fixtures and creative workpieces all over the world.
